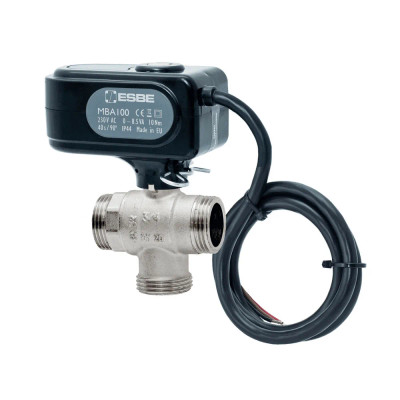

ESBE MBA132 3-Way Diverter Valve 1.25″ BSP Male – 11.3 Kvs
- Reliable motorized 3-way ball valve for heating and cooling systems
- Air bubble tight, EN12266-1 compliant
- Fast installation with secure spigot mounting
The ESBE MBA132 is a high-performance 3-way diverter valve designed for heating and cooling applications. Built for precision and durability, it features a motorized actuator that ensures smooth operation, moisture protection, and easy system integration. With its air bubble tight sealing, anti-condensation resistor, and auxiliary switch, this valve offers long-lasting reliability for residential and commercial HVAC systems.
Key Features
- High quality 3-way diverter valve for heating & cooling systems
- Air bubble tight for maximum efficiency and safety
- 230V AC actuator (50 Hz, 2-point signal, on/off function)
- 0.85 m connection cable pre-fitted for convenience
- 6A auxiliary switch included
- Anti-condensation resistor protects electronics from moisture
- 90° operating range – full cycle in 40 seconds
- Quick, secure spigot mounting for easy installation
- Compatible with DN20–25 sizes
Technical Specifications
| Model Reference | MBA132 (43102600) |
|---|---|
| Nominal Diameter (DN) | 25 |
| Kvs | 11.3 |
| Connections (A/B/C) | G 1 1/4″ |
| Dimensions (mm) | D: 82 | E: 29 | F: 43 | G: 42 | H: 40 |
Recommended Accessories
For best performance, use with:
- 1.25″ Flat Faced Union Adaptors (x3) – 28 mm Press Fit
